FAS-B80AFM213-PRO
Key Features
1/2.8” progressive scan CMOS
Max. 8MP(3840×2160) @25/30fps resolution
2.7~13.5mm motorized lens
WDR, 3D DNR, ROI, HLC, BLC, Defog
Support face, human, vehicle detection and capture
Smart events: intrusion, single line crossing, double line crossing, loitering,
wrong way, people counting
1/1 audio in/out, 1/1 alarm in/out
Smart IR up to 60m
Built-in SD card slot, IP67, IK10, PoE
Specification
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Max. Resolution | 8MP (3840×2160) |
| WDR | 130dB |
| Electronic Shutter | Auto/Manual, 1/5 ~ 1/20,000s |
| Min. illumination | Color: 0.01 Lux @ (F1.6, AGC ON) , B/W: 0 Lux @ (IR LED ON) |
| Day & Night | IR cut filter |
| IR Distance | Up to 60m (196.9 ft) |
| IR On/Off Control | Auto/Manual |
| Pan/Tilt/Rotation Range | Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚ |
| Lens | |
| Lens Type | Motorized focus |
| Iris | Fixed Iris |
| Focal Length | 2.7 ~ 13.5 mm |
| F Number | F1.6 |
| Angle of View | H: 98.1°~30.9°, V: 52.6°~17.3° |
| Video | |
| Streaming Capability | 3 Streams |
| Stream/Frame Rate | Stream1: 3840×2160, 2592×1944, 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @ 25/30fpsStream2: D1, VGA, CIF @ 25/30fpsStream3: VGA, CIF, QVGA @ 25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200kbps~16Mbps Stream2: 100kbps~6Mbps Stream3: 100kbps~3Mbps |
| Region of Interest | Off/On (8 Zone, Rectangle) |
| Smart Encode | Support |
| Image | |
| Image Adjustment | Brightness, Sharpness, Contrast, Saturation adjustable |
| Aisle Mode | Support |
| Mirror | Support |
| White Balance | Auto/Manual |
| Day/Night Setting | Auto, Day, Night, Time |
| Smart IR | Support |
| Noise Reduction | 2D/3D DNR |
| Image Enhancement | HLC, BLC, Defog |
| Wide Dynamic Range | True WDR |
| S/N Ratio | 55dB |
| Motion Detection | Support |
| Privacy Masking | Support |
| Smart Function | |
| Multi-Object Detection | Supports face, human, vehicle detection and capture |
| Smart Events | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong way, People countingSupport alarm triggering by specified target types (human and vehicle) |
| Audio | |
| Compression | G.711, RAW_PCM |
| Bit Rate | 8kbps, 16kps, 64kbps |
| Network | |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
| Interoperability | ONVIF, SDK, CGI |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
| Language | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
| Interface | |
| Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Input, 1ch Output |
| Alarm Interface | 1ch Input, 1ch Output |
| Reset Button | Support |
| SD Card Slot | Built-in, up to 256GB |
| Electrical | |
| Power Supply | DC12V (-15%~+25%)/POE (IEEE 802.3af) |
| Power Consumption | Max 13 W |
| Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F ) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP67, IK10 |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | φ 110 ×353.3mm (φ 4.33″ ×14.03″) |
| Net Weight | 1.45 Kg (3.2 lb) |
| Accessories | |

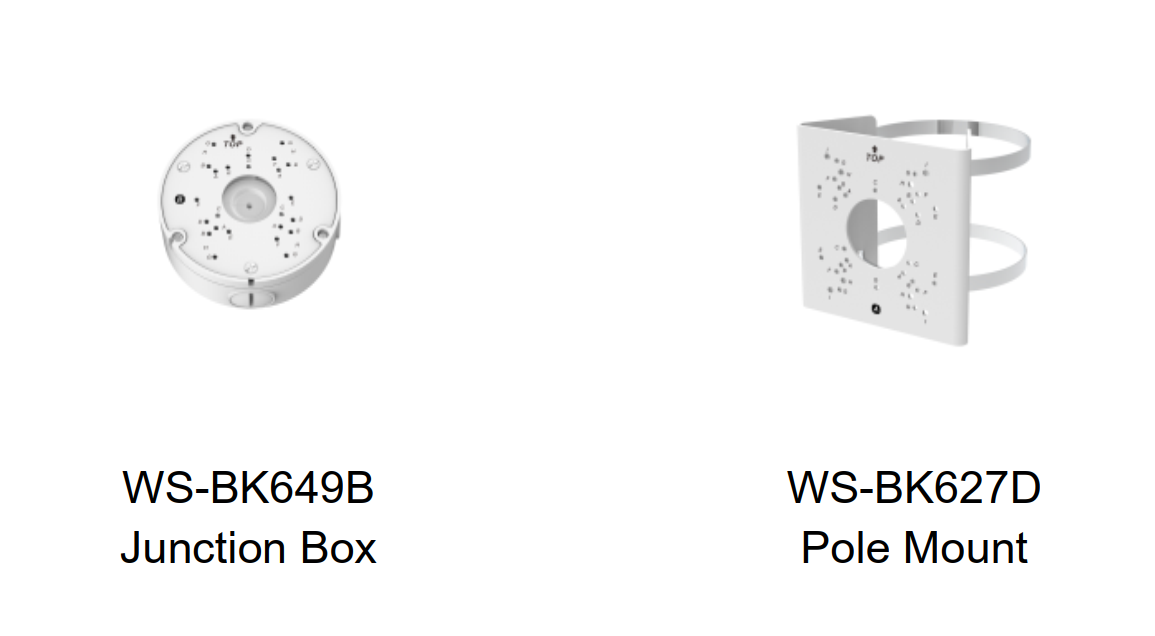

| Optional： |

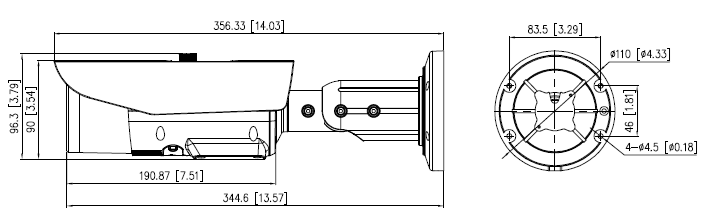

| Dimensions (mm) |
