Product Overview

 AP-YV3303 Constant Portable Scs Esd Static Electricity Monitor

（The second generation）

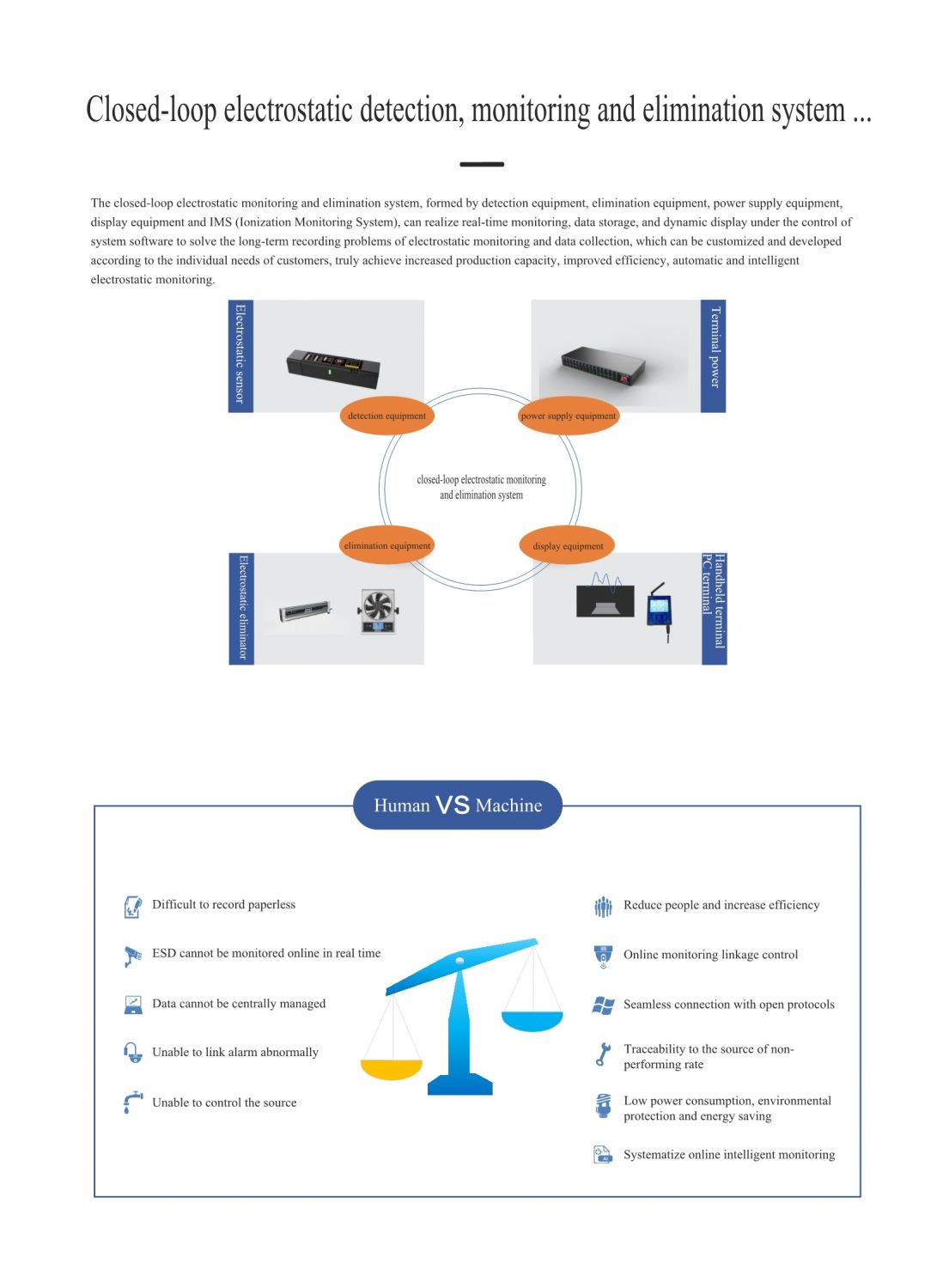

The closed-loop electrostatic monitoring and elimination system, formed by detection equipment, elimination equipment, power supply equipment, display equipment and IMS (Ionization Monitoring System), can realize real-time monitoring, data storage, and dynamic display under the control of system software to solve the long-term recording problems of electrostatic monitoring and data collection, which can be customized and developed according to the individual needs of customers, truly achieve increased production capacity, improved efficiency, automatic and intelligent electrostatic monitoring.

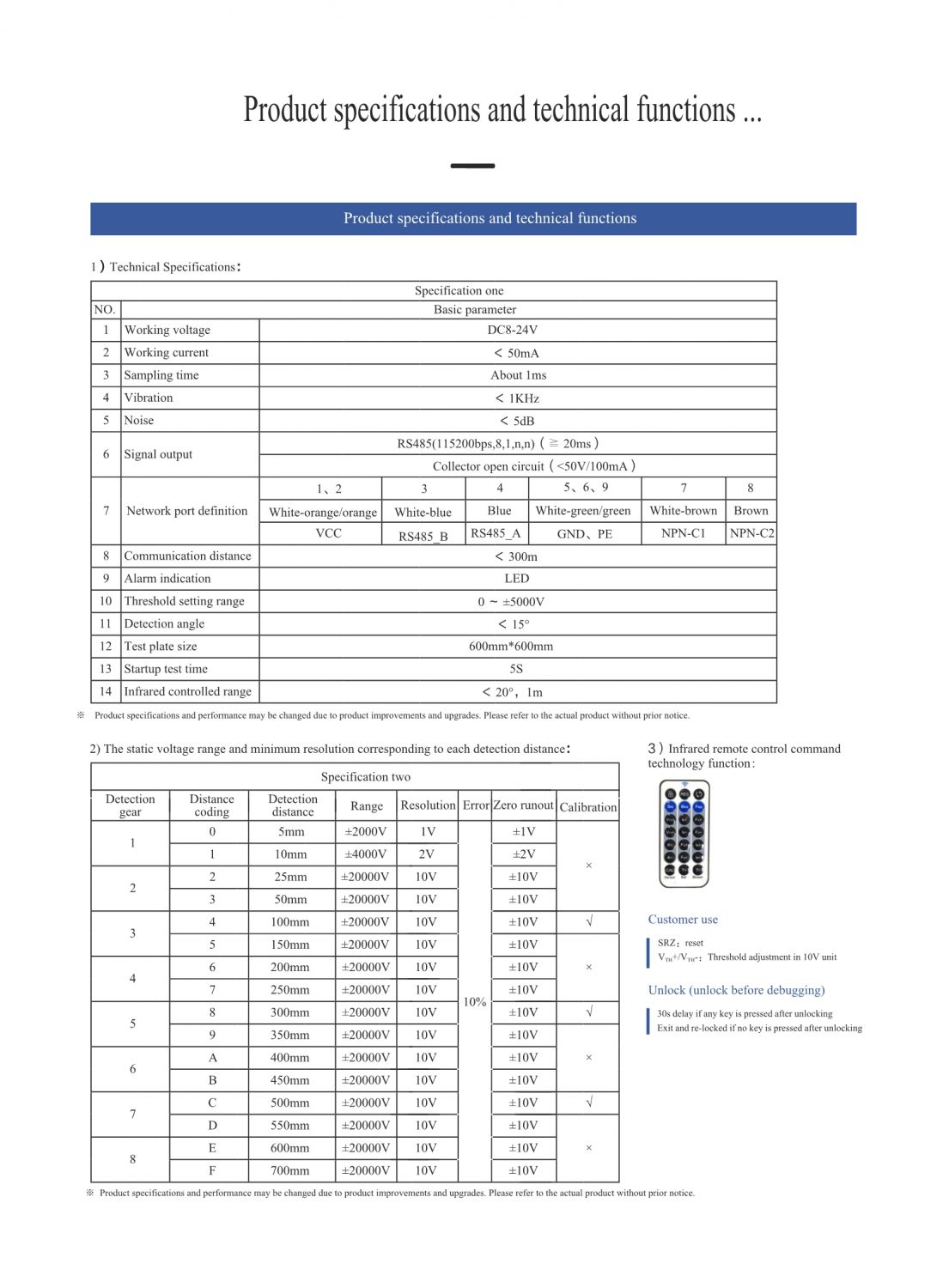

Specification

1）Technical Specifications：

Specification one
NO.	Basic parameter
1	Working voltage	DC8-24V
2	Working current	＜ 50mA
3	Sampling time	About 1ms
4	Vibration	＜ 1KHz
5	Noise	＜ 5dB
6	Signal output	RS485(115200bps,8,1,n,n)（≧ 20ms）
		Collector open circuit（<50V/100mA）
7	Network port definition	1、2	3	4	5、6、9	7	8
		White-orange/orange	White-blue	Blue	White-green/green	White-brown	Brown
		VCC	RS485_B	RS485_A	GND、PE	NPN-C1	NPN-C2
8	Communication distance	＜ 300m
9	Alarm indication	LED
10	Threshold setting range	0 ～ ±5000V
11	Detection angle	＜ 15°
12	Test plate size	600mm*600mm
13	Startup test time	5S
14	Infrared controlled range	＜ 20°，1m

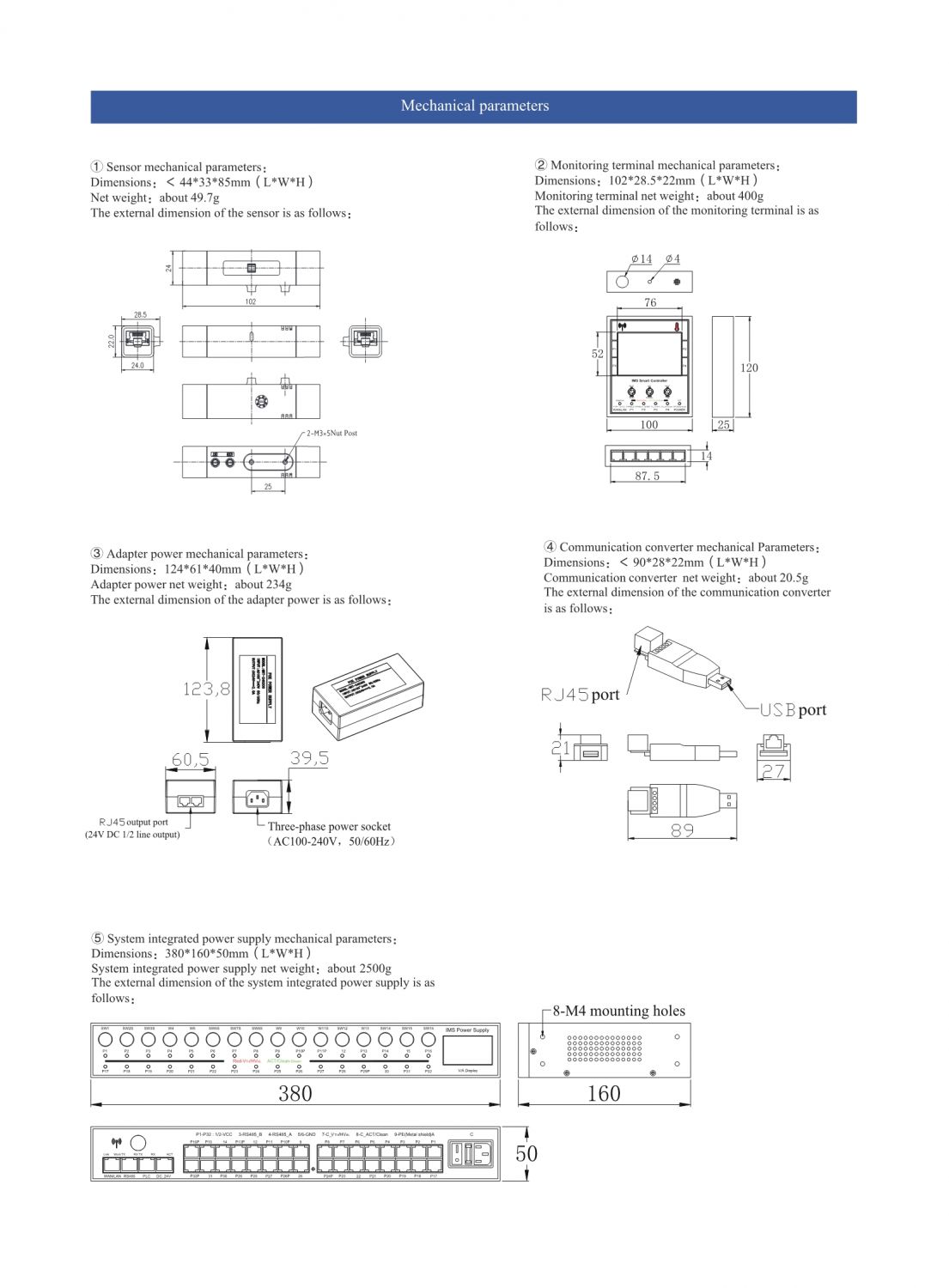

Mechanical Parameters

Product Calibration

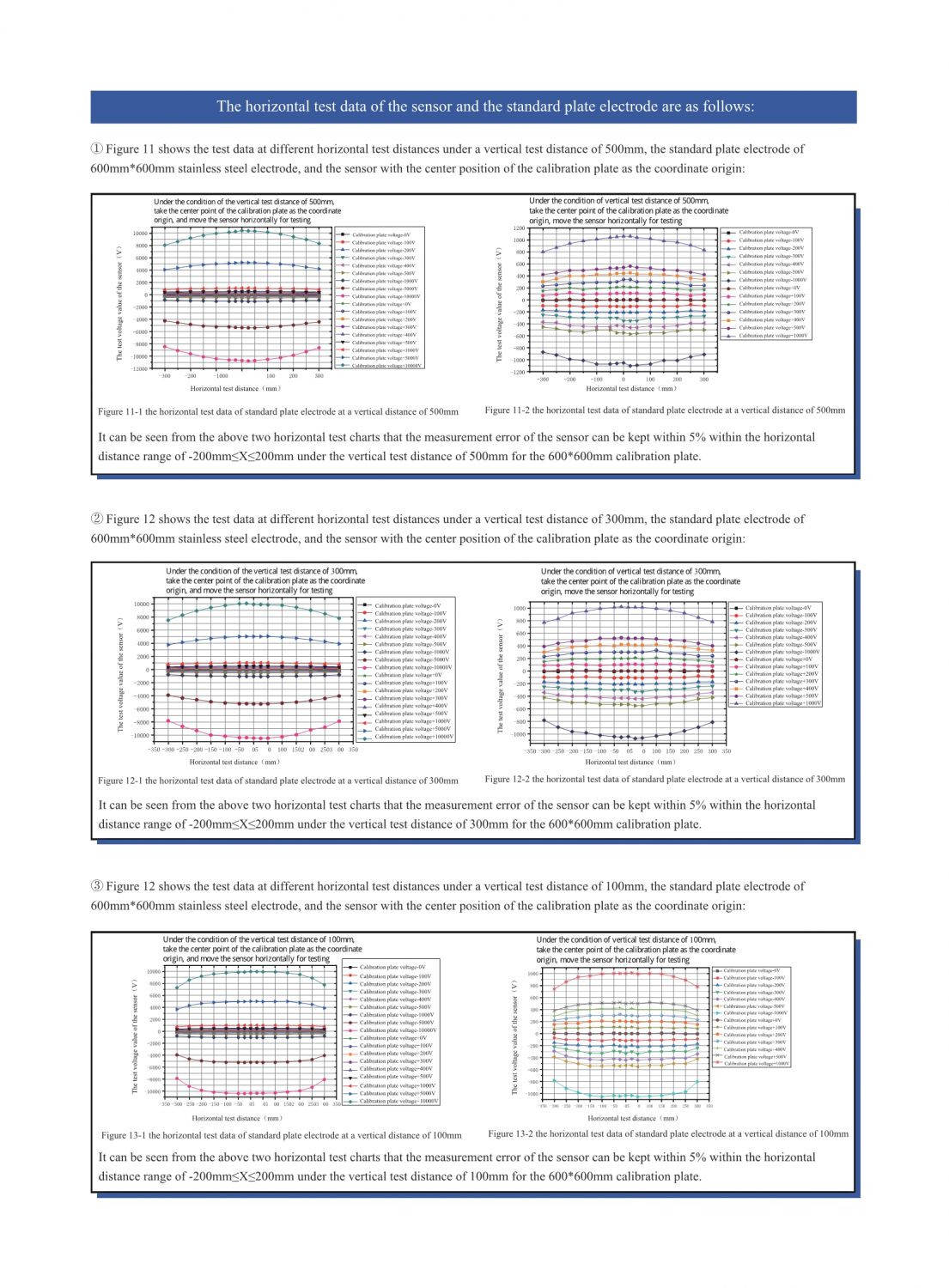

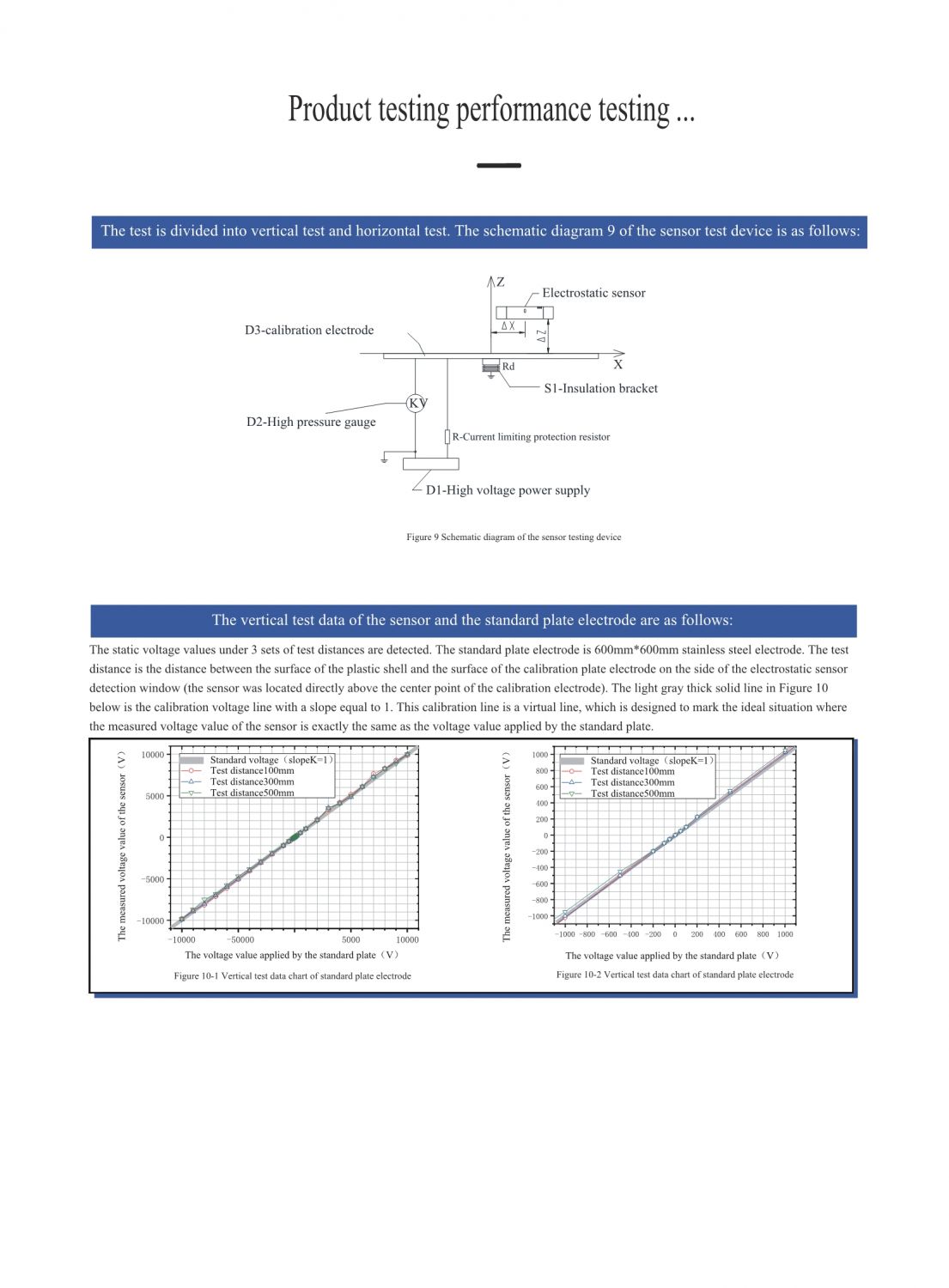

Product Testing

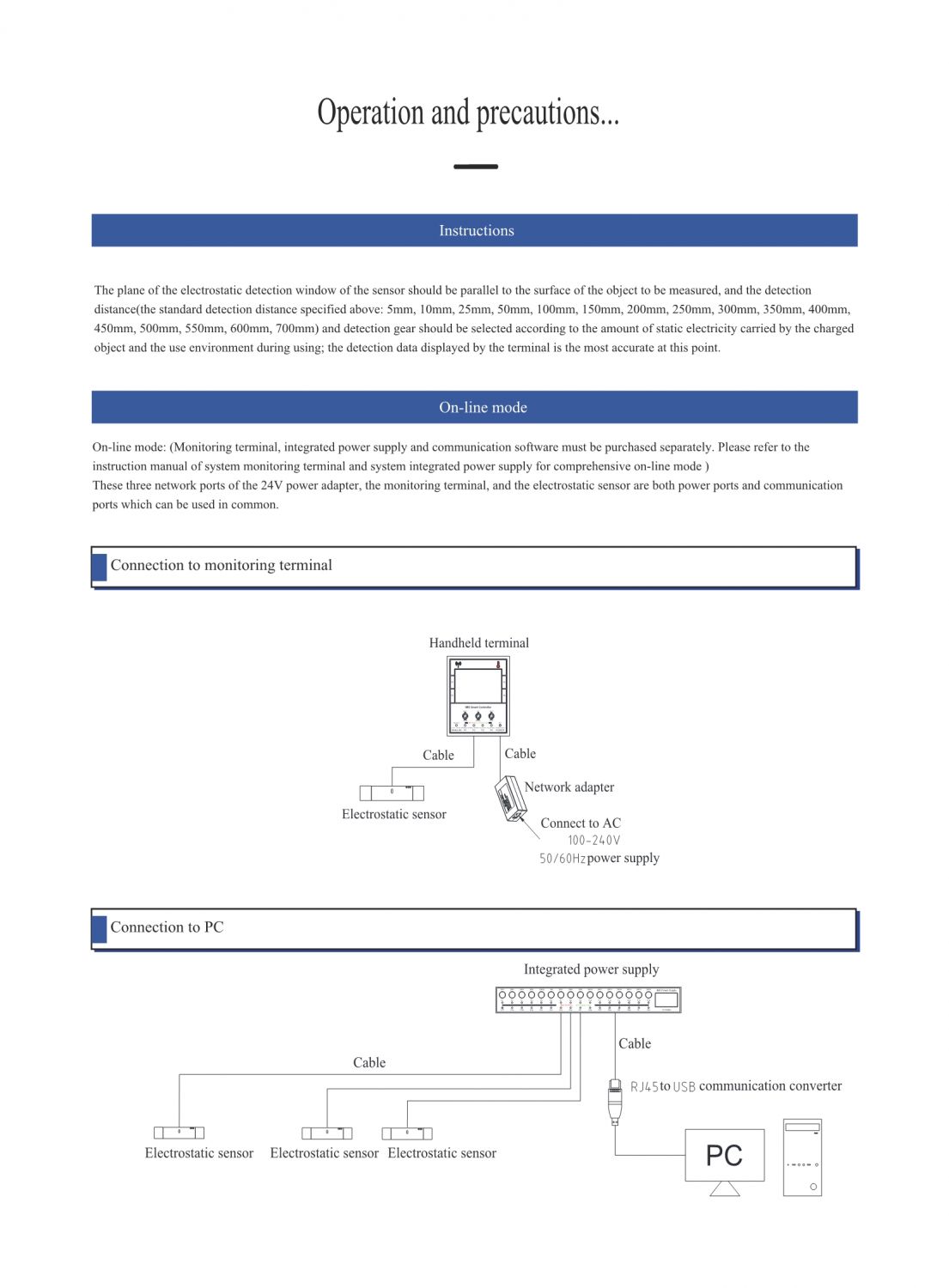

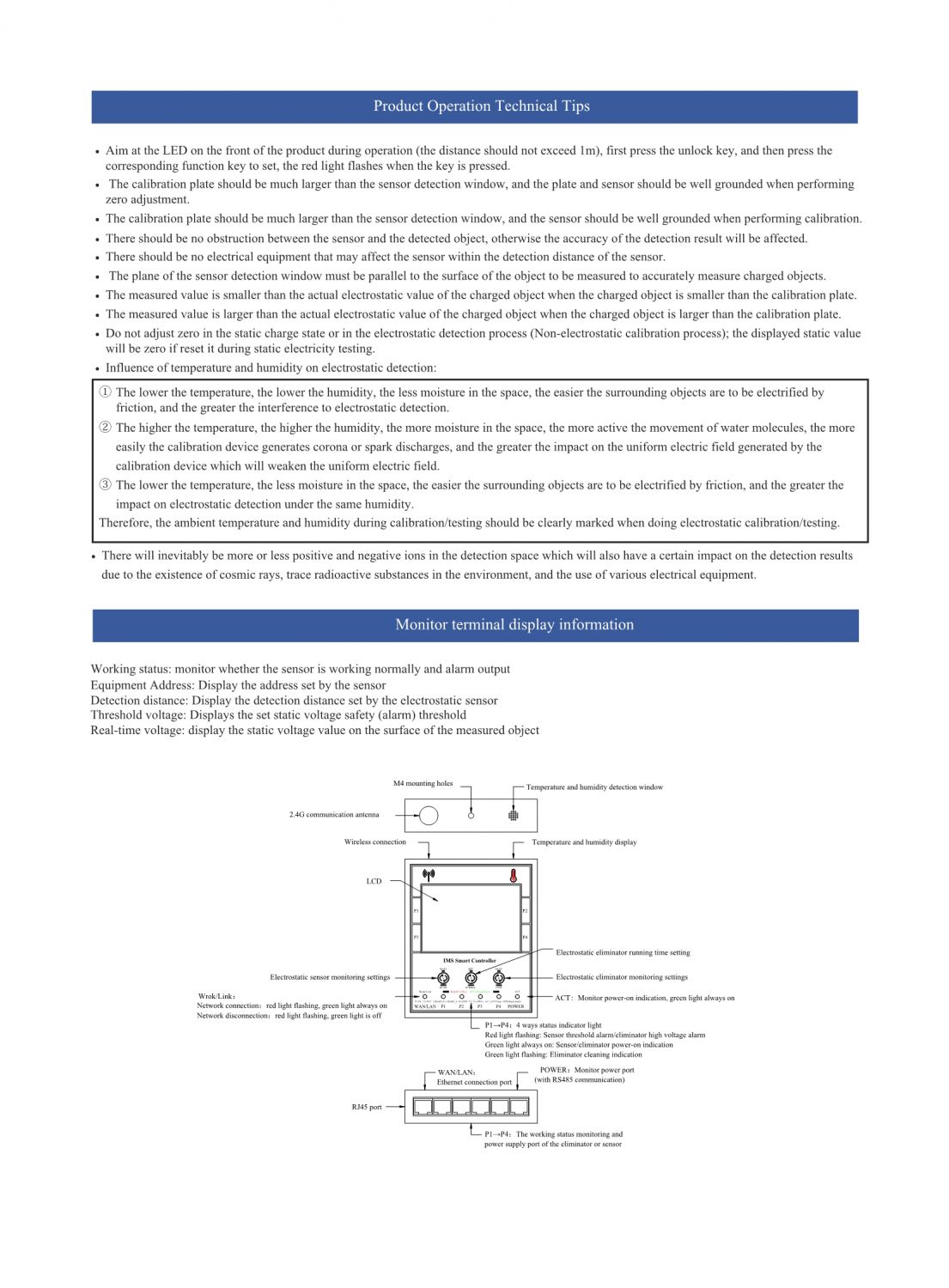

Operation And Precautions
